HSTW-IEL-6800M(8G4SF) Series

Introduction

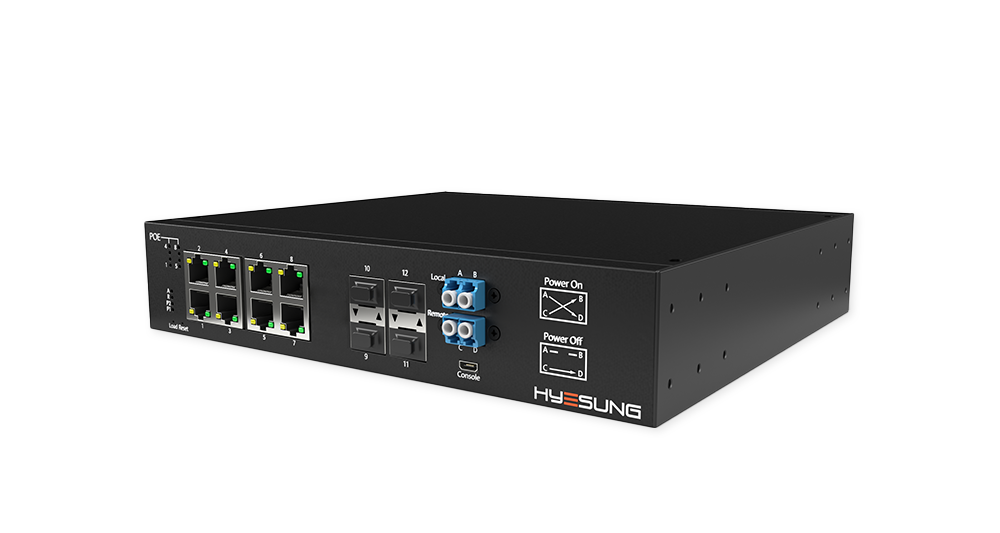

Industrial optical equipment of HSTW-IEL-6800M(8G4SF) Series supports 8 port 10/100/1000 Base-TX and 2 Slot 100/1000Base –LX, 2 Slot 100/1000/2500Base LX slot, and provides advanced network management function like duplexed ring network, VLAN, trunking, service quality, speed control, port mirroring, failure alarm, and online firmware upgrade. Since all components use industrial grade, the reliability of the product is very good and provides wide voltage input. It is very suitable for an outdoor environment with KCC standard, industrial standard design, dualized power input, and an operating temperature of -40℃ ~ 85℃.

Features
  • Recovery time in <Within 50ms, 15ms.
  • IEEE802.3af-2003, IEEE802.3at-2009(Option).
  • IPv4/IPv6 supported.
  • STP/RSTP/MSTP/ITU-T ERPS G.8032/HSTW-Ring
    Ethernet Ring Protection supported.
  • Auto-Negotiation, Half-Duplex, Full-Duplex configuration Support.
  • IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping supported.
  • IP source guard/RADIUS/TACACS+/ACL/SSH v2/HTTPS supported.
  • Port-based IEEE802.1X/Single and multiple IEEE802.1X/MAC-based authentication/VLAN Assignment supported.
  • Port Trunking, port speed limit, broadcast storm control supported.
  • LACP/Link Aggregation Static supported.
  • DNS client/proxy supported.
  • IEEE802.1Q VLAN/MAC based VLAN/Protocol based
    VLAN /IP subnet based VLAN/GVRP/MVR supported.
  • IETF RFC 1213 MIB-II (Management Information Base) supported.
  • Web Interface Management CLI-Console/Telnet,
    SNMP v1/v2/v3 RMON/System syslog supported.
  • Bypass modules(Option).
  • Optical track detection function(Option).
