Managed Industrial Ethernet
Link Optical Switch

HSTW-IEL-6800M(16G8SF) Series

HSTW-IEL-6800M(16G2SF) Series

Introduction

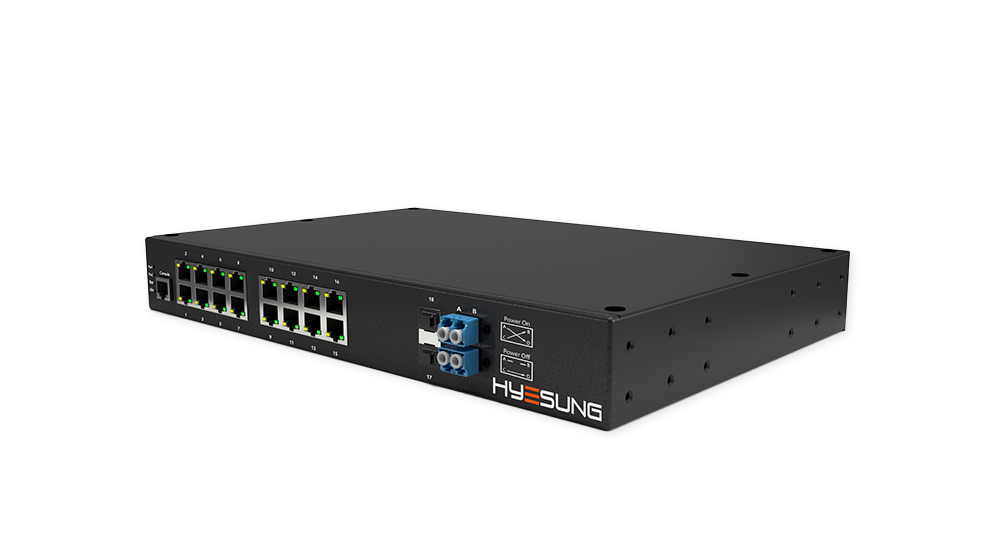

Industrial optical equipment of HSTW-IEL-6800M(16G2SF) Series supports 16 port 100/1000 Base-TX and 2 Slot 100/100/1000/ 2500 Base-LX slot, and provides advanced network management function like duplexed ring network, VLAN, trunking, service quality, speed control, port mirroring, failure alarm, and online firmware upgrade. Since all components use industrial grade, the reliability of the product is very good and provides wide voltage input. It is very suitable for an outdoor environment with KCC standard, industrial standard design, dualized power input, and an operating temperature of -40℃~85℃.

Main Features
  • 16 Port 10/100/1000 Base-TX and 2 Slot 100/1000/2500 Base - LX, 1 console Port supported.
  • ITU-T ERPS G.8032, STP(802.1D), RSTP(802.1w), MSTP(802.1s), HSTW-Ring 프로토콜 지원
    (Recovery time < Within 50ms, 15ms)
  • WEB, CLI, TELNET, SSH, SNMP supported.
  • Operating temperature range -40℃ ~ +85℃ (Industrial parts used).
  • IEEE802.3af-2003, IEEE802.3at-2009 POE supported.
  • Industrial standard design.
  • Packet lossless.
