Managed Industrial Ethernet
Link Optical Switch

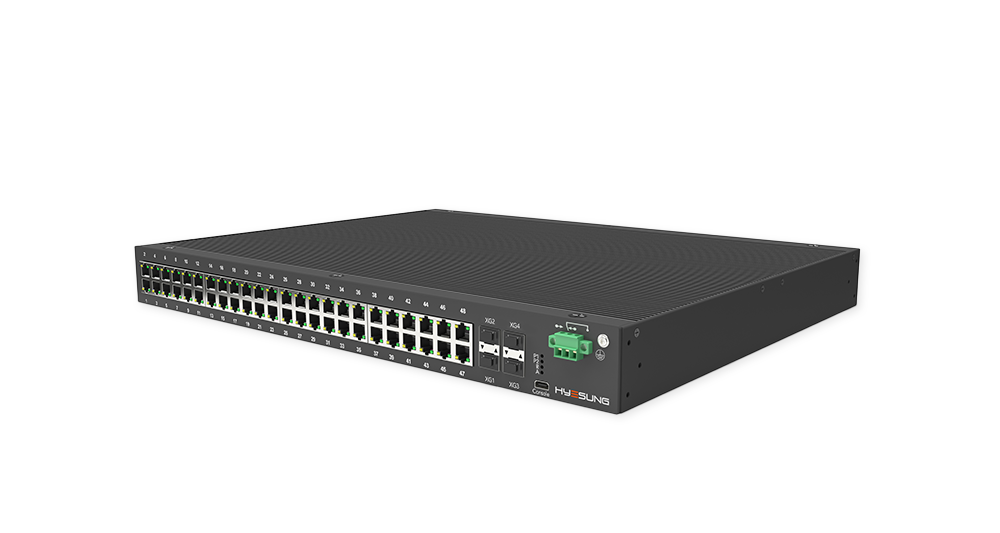

HSTW-IEL-6800M(48GC4XG) Series

HSTW-IEL-6800M(48G4XG) Series

Introduction

Industrial optical equipment of HSTW-IEL-6800M(48G4XG) Series supports 48 port 10/100/1000 Base-TX Port and 4 Slot 100/ 100/1000/2500/ 10000Base-LX SFP+ slot, and provides advanced network management functions like duplexed ring network, VLAN, trunking, service quality, speed control, port mirroring, failure alarm, and online firmware upgrade. Since all components use industrial grade, the reliability of the product is very good and provides wide voltage input. It is very suitable for an outdoor environment with KCC standard, industrial standard design, dualized power input, and an operating temperature of -40℃ ~ 80℃.

Main Features
  • 48 Port 10/100/1000Base-TX and 4 Slot 100/1000
    /2500/10000Base-LX, 1 console port supported.
  • ITU-T ERPS G.8032, STP(802.1D), RSTP(802.1w),
    MSTP(802.1s), HSTW-Ring protocol supported.
    (Recovery time < Within 50ms, 15ms)
  • WEB, CLI, TELNET, SSH, SNMP supported.
  • Operating temperature range -40℃ ~+80℃ (Industrial parts used).
  • Industrial standard design.
  • Packet lossless.
