HSTW1105-900(1G1SF)SERIES

HSTW1105-900(1G1SF)SERIES

Introduction

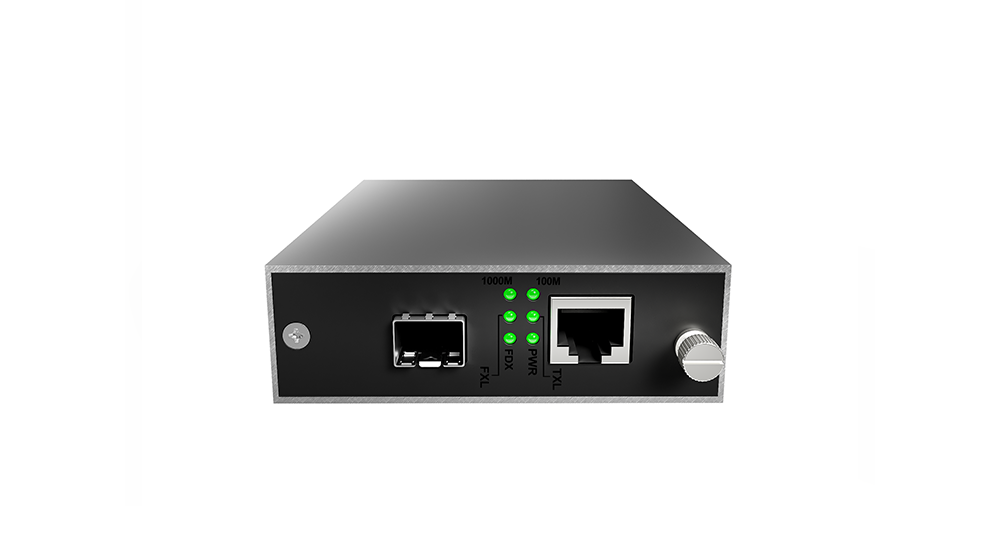

Industrial media converter of HSTW1105-900(1G1SF) Series supports 1 port 10/100/1000 Base-TX(or 10/100Base-TX) and 1 port 100M/1G SFP slot (or Soldering Type optical module). Since all components use industrial grade, the reliability of the product is very good and provides wide voltage input. With KCC standard and industrial standard design, it is very suitable for external environment with operating temperature of –20℃~70℃.

Main Features
  • 1 Port 10/100Base-TX 또는 1 Port 10/100 /1000Base-TX supported.
  • 100/1000Base-LX SFP 1 Slot 또는 100 /1000Base-FX 1Port supported.(Optional)
  • Quality of Service (QoS) guaranteed.
  • IEEE802.3af-2003, IEEE802.3at-2009 POE supported (Optional).
  • Full duplex/half duplex transmission mode supported.
  • Operating temperature range -20℃ ~+70℃ (Industrial parts used).
  • Industrial standard design.
  • Packet lossless.
