HSTW-DMB2100M_12M Series

HSTW-DMB2100_12M Series

Introduction

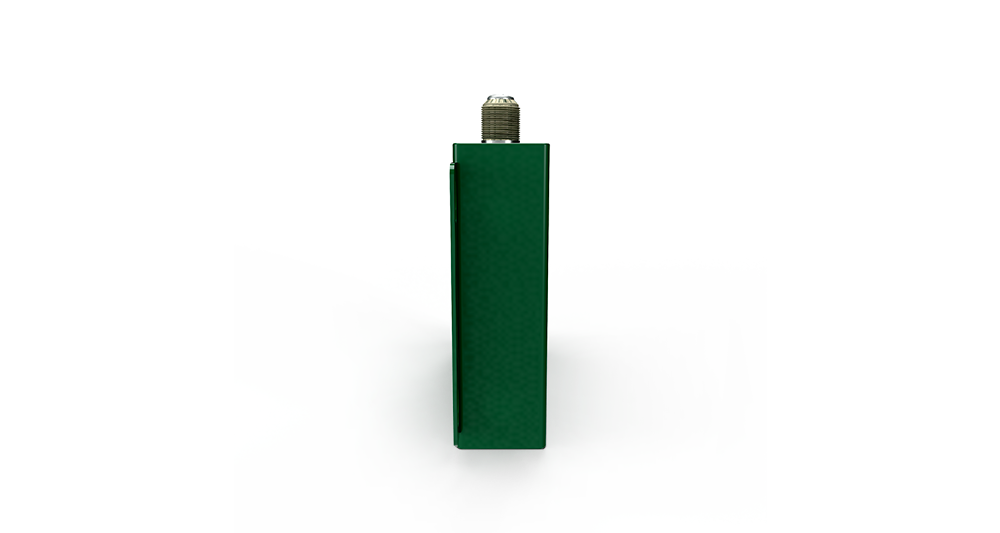

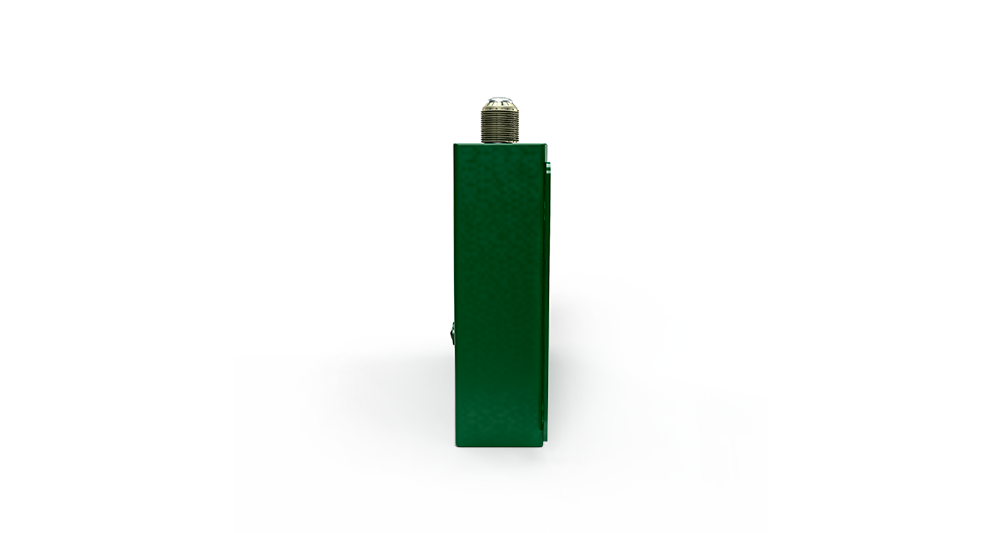

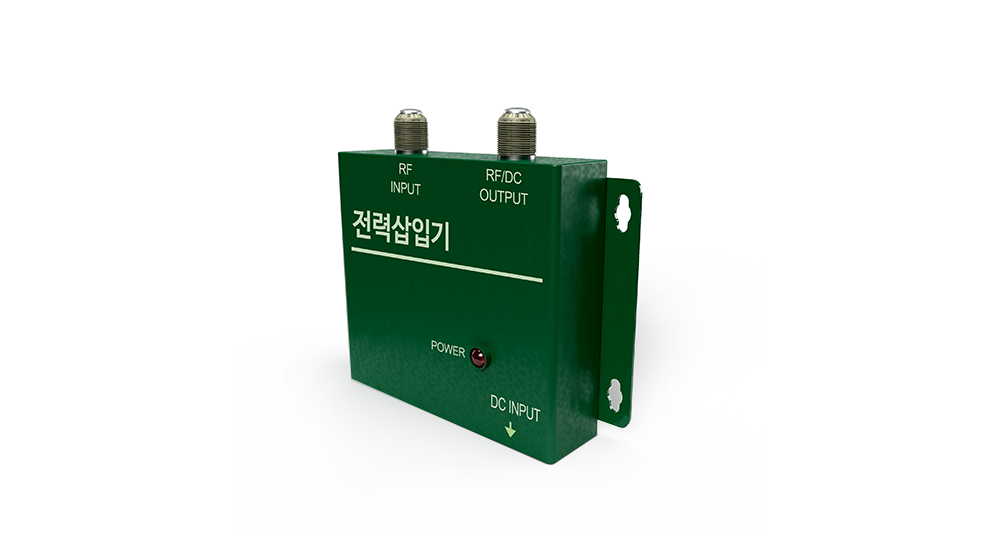

HSTW-DMB2100_12M Series Broadcasting Repeater is an equipment which transmits RF signals combined with DC voltage of DC power device and FM/DMB broadcasting signal transmitted from H/E via power inserter to FM/DMB repeater through coaxial cable. It is highly suitable for field environment

Main Features
  • Sends AC220V/60Hz input power with output power of DC12V/24V via DC power device (adaptor).
  • Structured with flat feature with frequency bandwidth as broadband.
  • Designed with structure convenient for field environment.
  • Highly superior distribution loss and return loss, etc.
  • Structure usable for indoors.
  • Applied with overvoltage prevention circuit and lightning protection circuit design.
  • Capable of changing design of specification to desired DC output through DC power device
    (12V/2A, 24V/2.5A)
