HSTW-DMB2100M_24M Series

HSTW-DMB2100_24M Series

Introduction

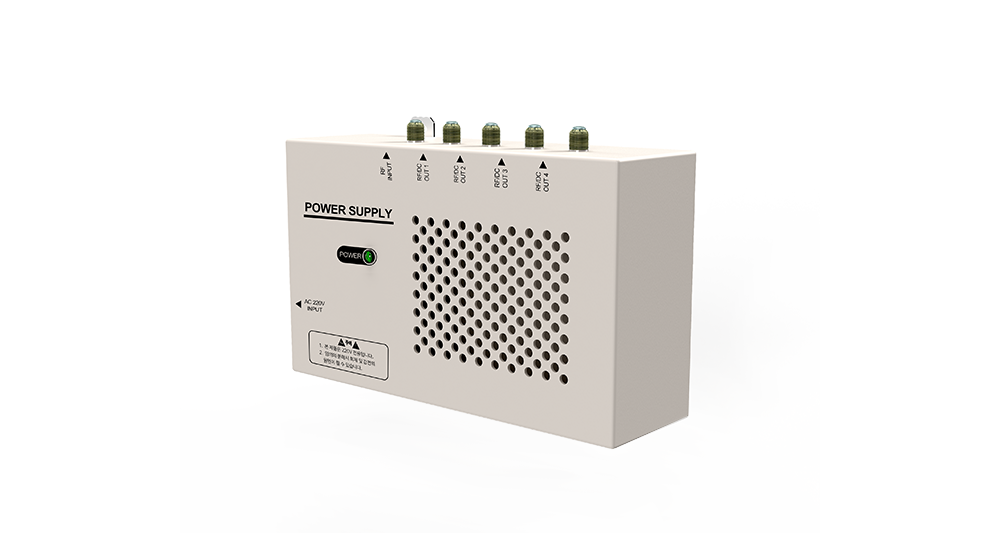

HSTW-DMB2100_24M Series Broadcasting Repeater is an equipment which transmits RF signals combined with DC voltage of DC power device and FM/DMB broadcasting signal transmitted from H/E via power supply with built-in power inserter to FM/DMB repeater through coaxial cable. It is highly suitable for field environment.

Main Features
  • Power Supply structure with built-in power inserter and 4 distributors.
  • Uses AC220V/60Hz input power, and outputs it as DC24v/4.5A power.
  • Only FM/DMB band passes through with built-in BPF circuit of 88Mhz~216Mhz
    (Minimization of frequency interference).
  • Designed with structure convenient for field environment.
  • Highly superior distribution loss and return loss, etc.
  • Structure usable for indoors.
  • Applied with overvoltage prevention circuit and lightning protection circuit design(SMPS).
